MINI LIMIT SWITCH Hanyoung Nux HY-L802 Mini limit switch Roller Plunger Type Compact Size
$5.00
1 Piece/pieces(min. Order)
EngineeringBee
Selangor, Malaysia,
Response Time
> 24 Hrs
On-time Delivery Rate
100%
Ask for more details from the seller
Contact Seller
Description

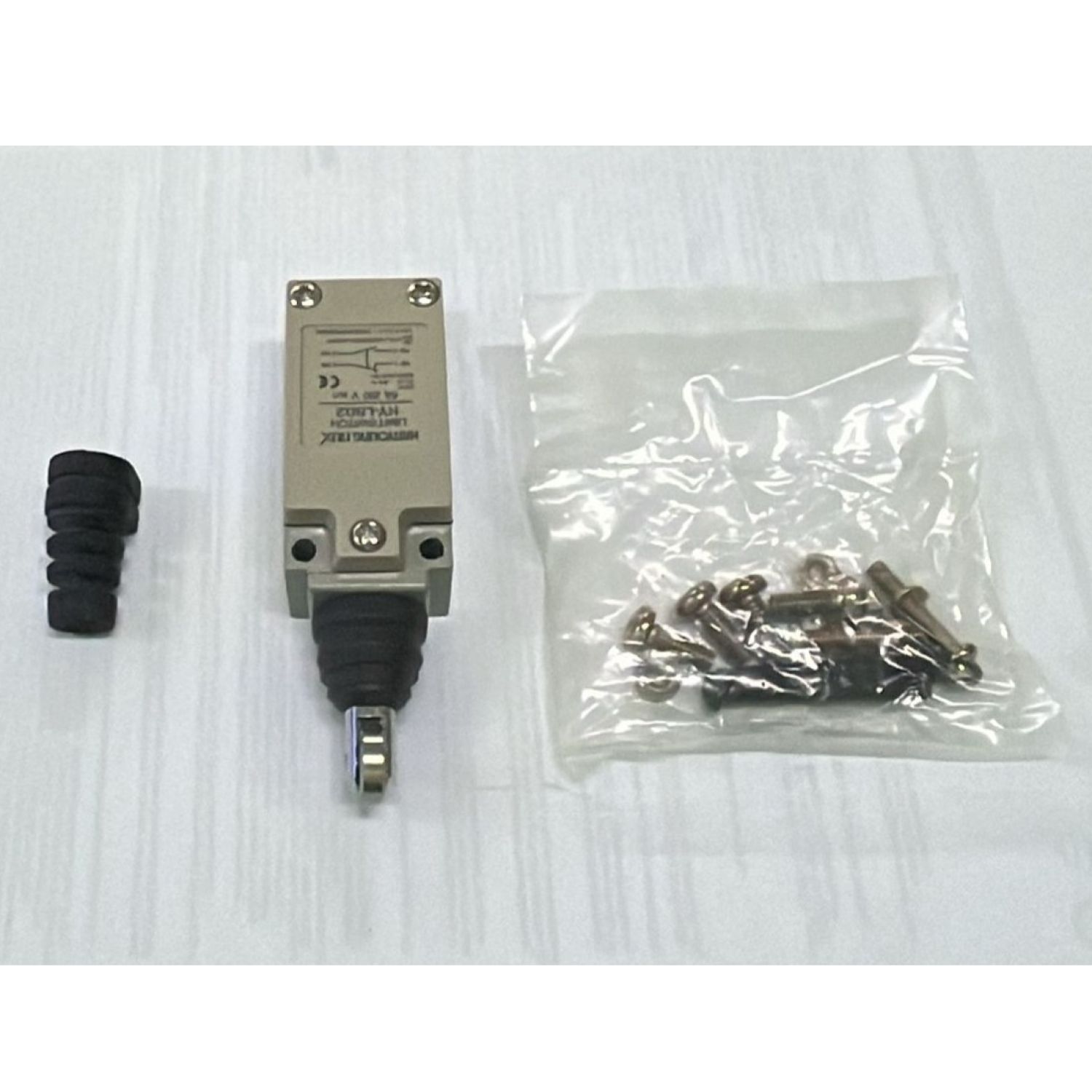

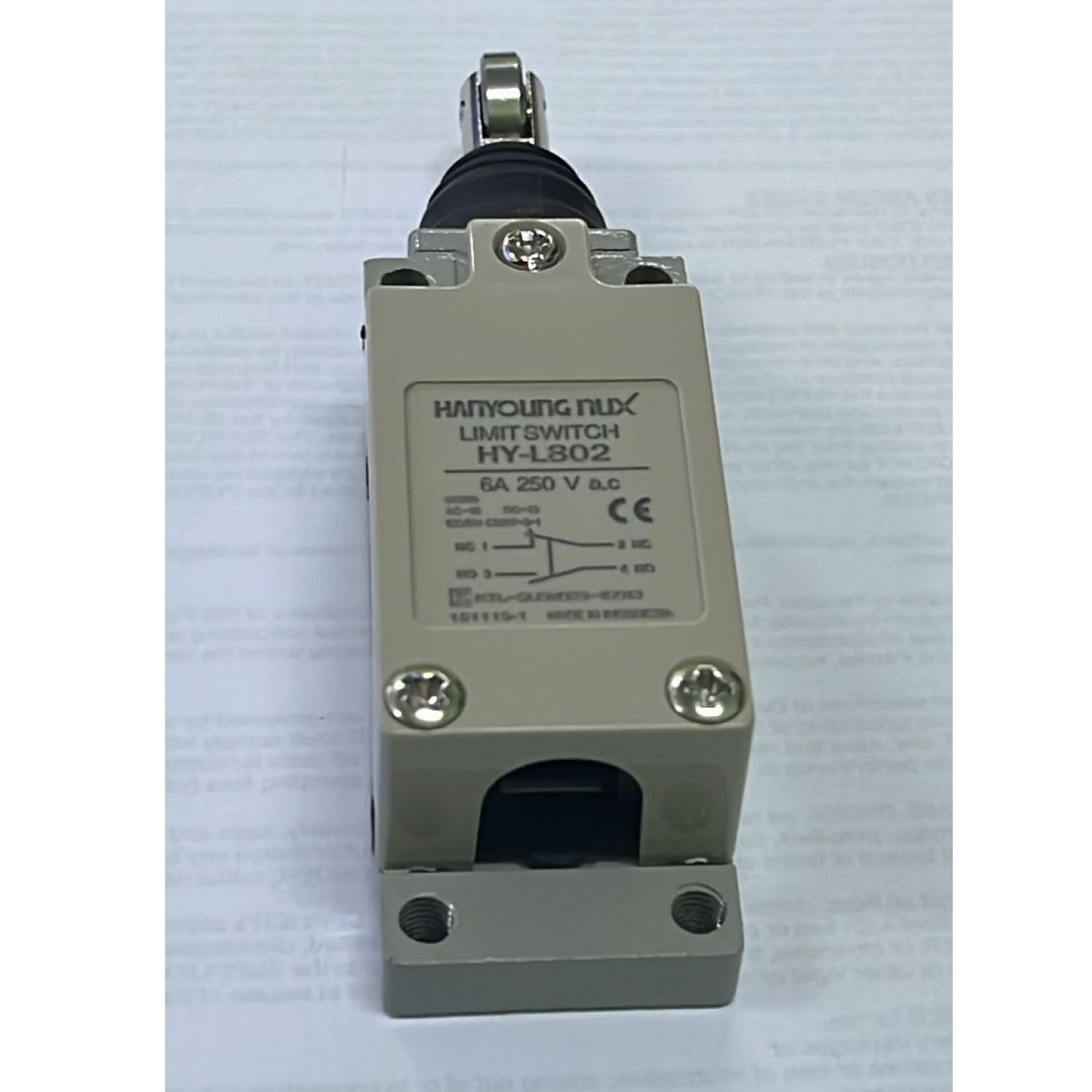

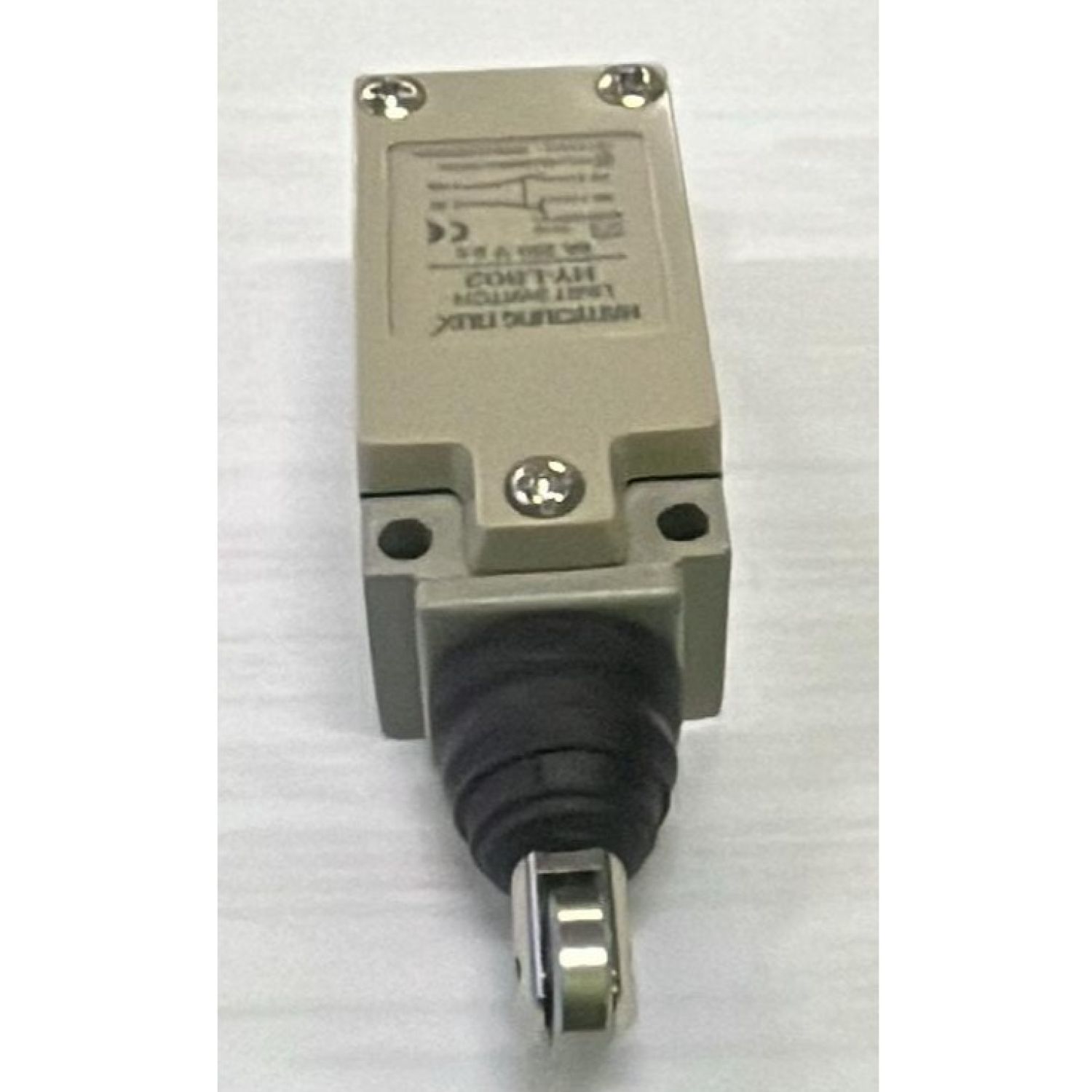

- Hanyoung Nux HY-L802 Mini limit switch Roller Plunger Type Compact Size
- Roller Plunger Type
- Contact material : Agni
- Protective structure : IP54 (Only when using our company product HYC-M1, M2 in the wire opening)
- Rated current(le) : 6 A 250 V a.c (AC-12, AC-13)
- Dielectric strength : 2,000 V a.c 50/60 Hz for 1 min (between the terminal and non-recharging metal part)
- Insulation resistance : Min 100 MΩ (500 VDC)
- Contact resistance : Max 20 MΩ
- Rated voltage (Ue) : 220VAC
- Case material : Zinc die-casting and plastic body and plastic cover
- Vibration : Double amplitude 1.5mm, frequency 10 ~ 55 ㎐, continuously 2 hour
- Shock : 300 m/S2 (durability), 100 m/S2 (malfunction)
- Max opening / closing frequency : Max 120 times / min
- Life mechanical : Min 1 million times (less than open/close frequency 120 times/min)
- Life electrical : Min 100 thousand times (less than open/close frequency 30 times/min)
- Ambient temperature : -10 ~ 70oC
- Ambient humidity : 45~95%R
STOCK: 2PC
RN: 584
