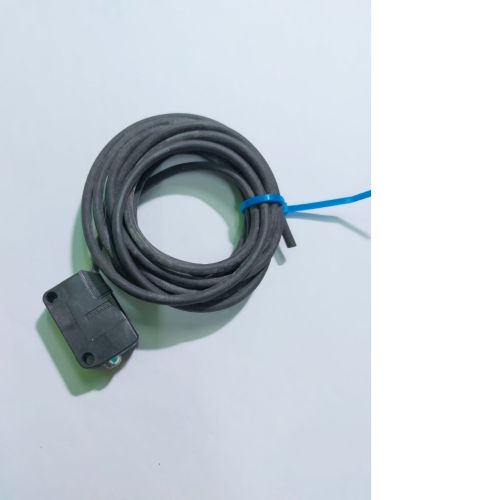

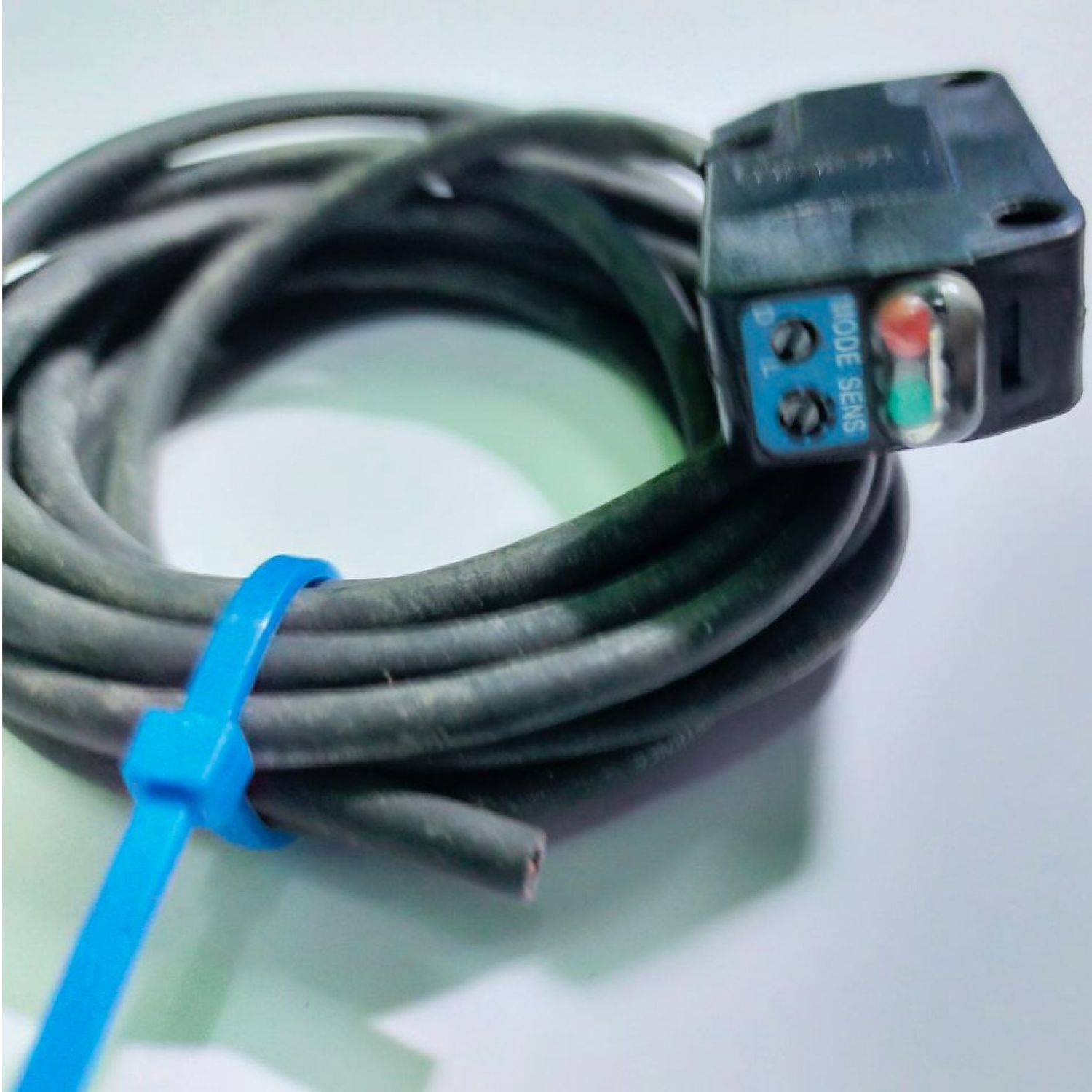

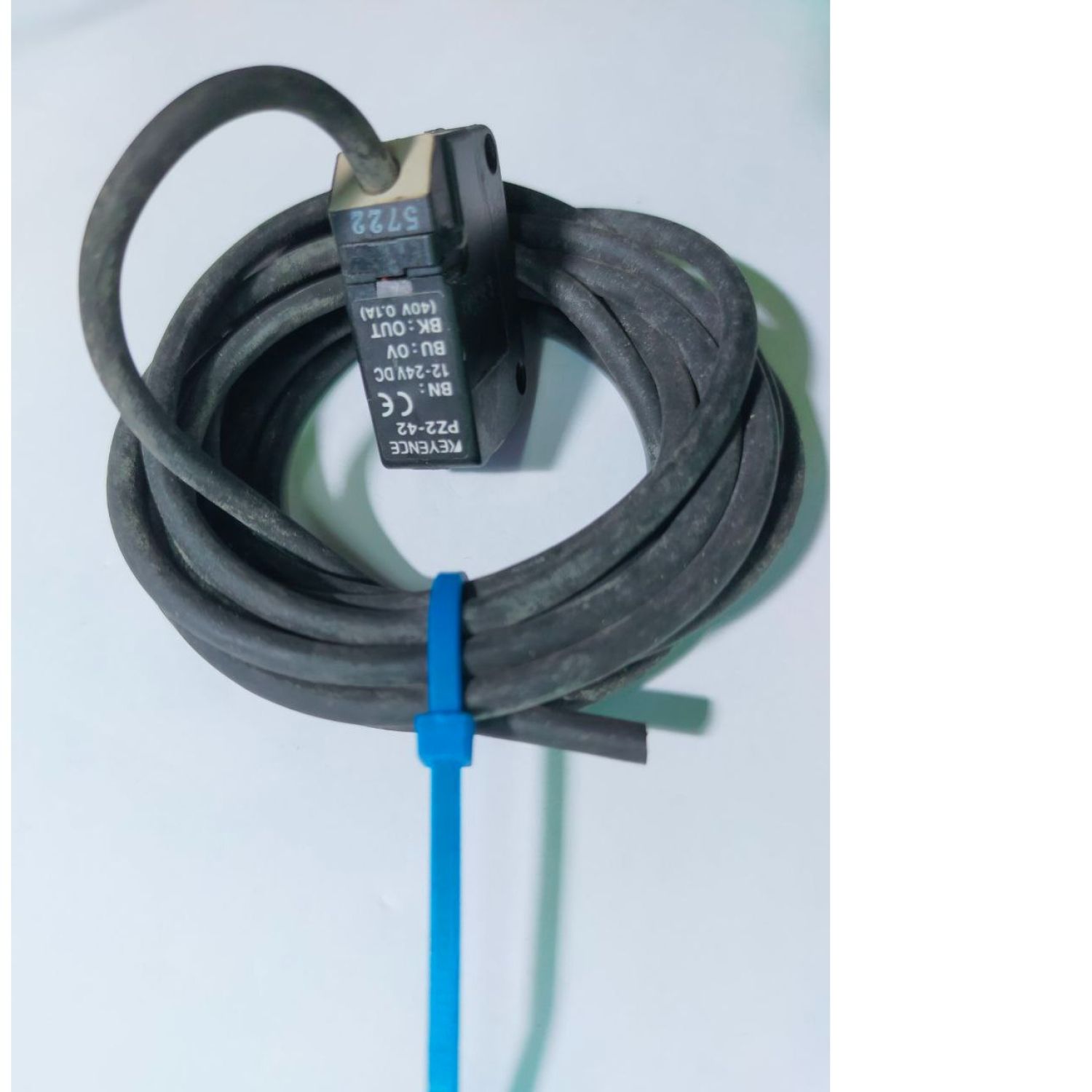

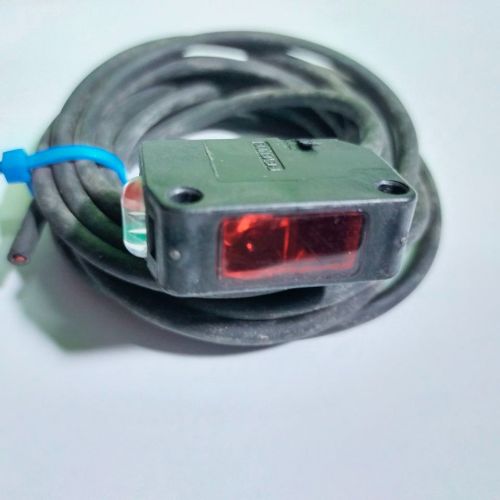

KEYENCE- PZ2-42 -SENSOR

Model

PZ2-42

Type

Diffuse-reflective Short-range

Detection distance

100 mm (100 x 100 mm white mat paper)

Light source

Red LED

Detectable object

Transparent and opaque

Hysteresis(of detecting distance)

20 % max.

Sensitivity adjustment

1-turn trimmer (240°)

Response time

1 ms max.

Operation mode

LIGHT-ON/DARK-ON (switch-selectable)

Indicator lamp

Output and power*1: Red LED, Stable operation: Green LED

Controloutput

NPN or PNP: 100 mA (40 V) max., Residual voltage: 1 V max.

Protection circuit

Reversed polarity, overcurrent protection, surge absorber

Rating

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

Current consumption

35 mA or less

Environmental resistance

Enclosure rating

IP67

Ambient light

Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.

Ambient temperature

-20 to +55 °C (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s2, 6 times in each of the X, Y, and Z directions

Case material

Glass-fibre reinforced plastic

Accessories

Mounting bracket x 1, Mounting screws x 2, Plate nut x 1

Weight

Approx. 50 g (including 2-m connector cable)
