*Exact Spec:*

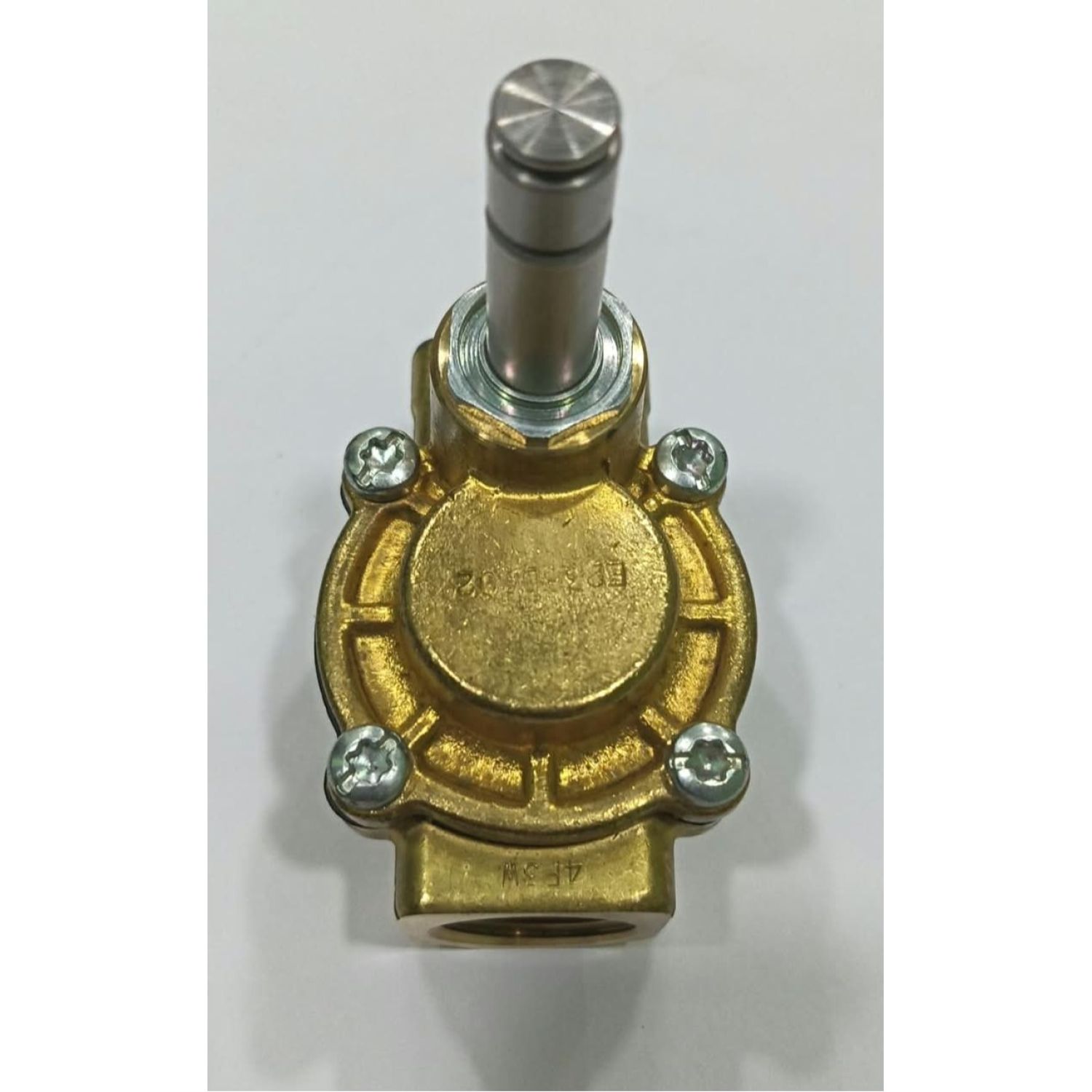

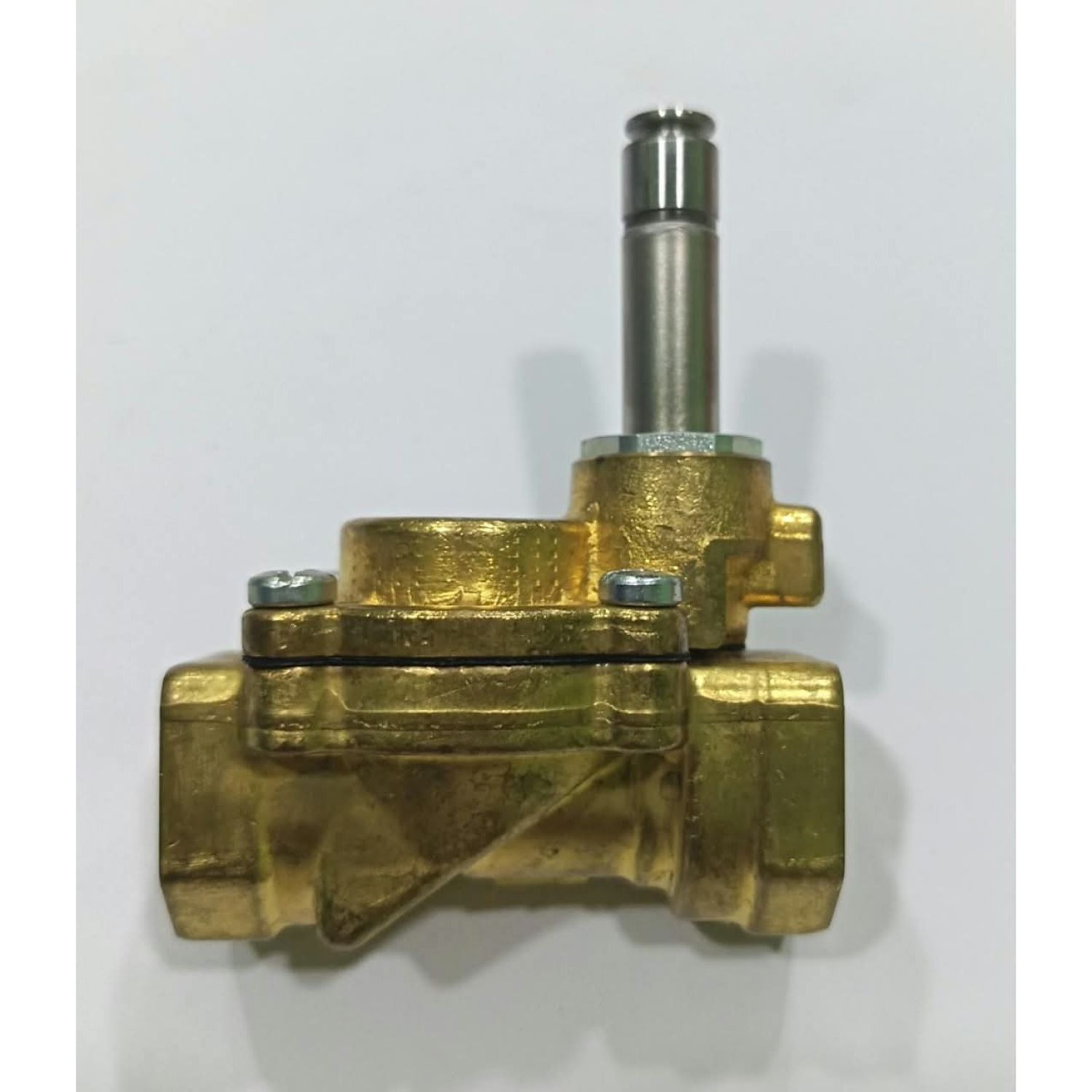

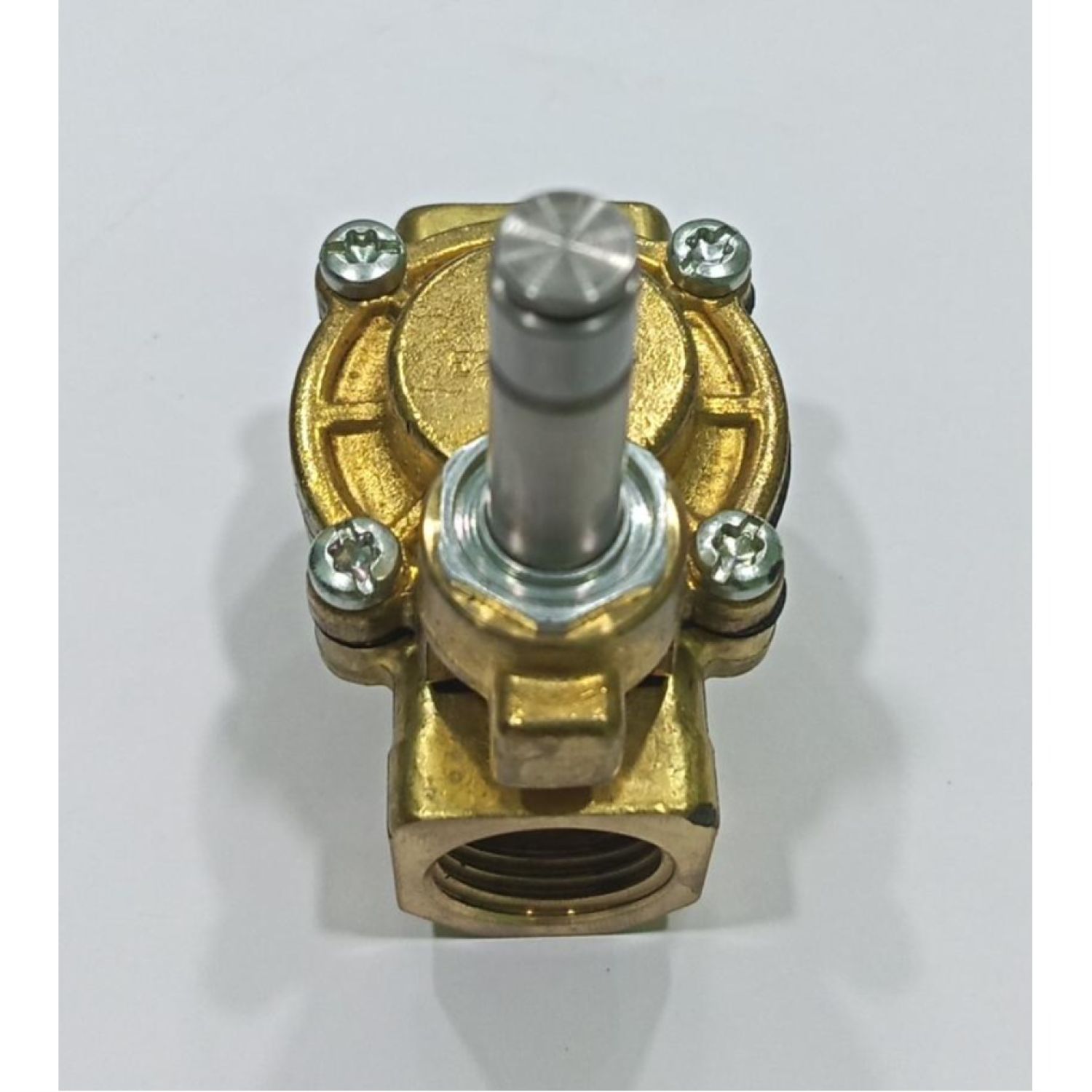

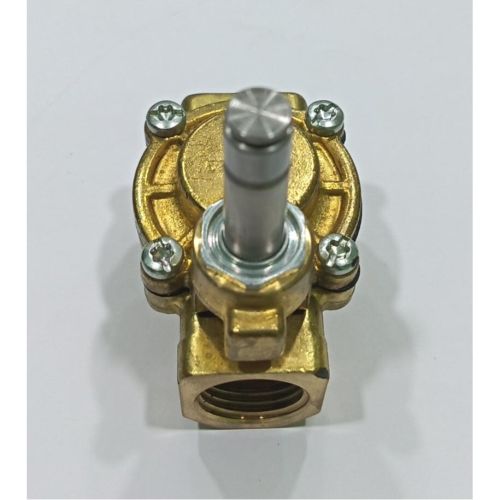

- *Brand / Model:* E28 11-002 / E28 Series (OEM used by many filter companies)
- *Type:* 2/2 Way, Normally Closed (NC), Pilot operated
- *Body:* Hot forged brass CW617N, 4-screw cover
- *Port:* *3/4" BSP Female* (from your photo - measure, should be ∼25mm inner thread) - also available in 1/2"
- *Orifice:* 20mm
- *Kv Flow:* ∼5.0 m3/h
- *Pressure:* *0.3 - 16 bar* (needs 0.3 bar minimum to open, cannot work at 0 bar)
- *Seals:* NBR, Diaphragm NBR
- *Media:* Water, air, light oil - NOT for steam with NBR
- *Temperature:* -10°C to +90°C (media), max 60°C ambient for coil
- *Coil fit:* 13mm tube, fits CEME B6 / B6A coil - 12VDC, 24VDC, 24VAC, 230VAC - 8W to 15W
STOCK:1PC
